PTC Hot Melt Glue
Gun Heater
适用范围：
适用于直流热熔胶枪等类似用途的电热器具。
APPLICATION SCOPE:
Applicable to DC hot melt glue guns and other similar electric heating,
appliances.
|
型号 Model |
额定工作电压 Rated Voltage |
零功率电阻值 Zero Power Resistance Value |
居里温度 Curie Temperature |
功率 Power |
出胶时间 Curie Temperature |
外观尺寸 Dimension L×W×H |
出胶量（克） Glue output (g) |
|
MZ17-1
|
3.6V DC
|
0.8-1.5Ω
|
170°C
|
10W
|
15秒
|
Φ3.2×Φ10.8×23.5mm
|
1.5
|
|
MZ17-2
|
7.2V DC
|
2-3Ω
|
170°C
|
10W
|
15秒
|
Φ3.2×Φ10.8×23.5mm
|
1.5
|
|
MZ17-3
|
10.8V DC
|
3-4Ω
|
170°C
|
10W
|
15秒
|
Φ3.2×Φ10.8×23.5mm
|
1.5
|
|
MZ17-4
|
12V DC
|
2-6Ω
|
170°C
|
30W
|
15秒
|
Φ5×Φ14.4×48.7mm
|
6
|
|
MZ17-4
|
18V DC
|
5-9Ω
|
170°C
|
30W
|
15秒
|
Φ5×Φ14.4×48.7mm
|
6
|
PTC SAP Hot Water
System Heater
适用范围：
适用于SAP热水系统、电动汽车、太阳能水系统等类似用途电热设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of similar electric heating
equipment such as SAP hot water systems, electric vehicles, and solar water
systems.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ10-Q12A1
|
230V AC
|
1200W
|
10.5 A
|
2500V/1 min
|
Φ40×190mm
|
|
MZ10-Q15A1
|
230V AC
|
1500W
|
13.0A
|
2500V/1 min
|
Φ40×200mm
|
|
MZ10-Q15A2
|
350V AC
|
1000W
|
5.8A
|
2500V/1 min
|
Φ40×180mm
|
|
MZ10-Q12A2
|
350V AC
|
1200W
|
6.9A
|
2500V/1 min
|
Φ40×190mm
|
|
MZ10-Q18A3
|
600V AC
|
1800W
|
6.0A
|
2500V/1 min
|
Φ40×220mm
|
适用范围：
适用于电动汽车空调等类似设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of electric vehicle air
conditioners and similar equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ21-15A
|
350V DC
|
1500W±5%
|
8.5A
|
2500V/1min
|
255x100x20mm
|
|
MZ21-18A
|
350V DC
|
1800W±5%
|
10.3 A
|
2500V/1min
|
255x100x20mm
|
|
MZ21-20A
|
350V DC
|
2000W±5%
|
11.5 A
|
2500V/1min
|
255x100x20mm
|
PTC Semiconductor Electric
Boiler Heater
水质要求：循环水应选用纯净水或去离子水或自来水（PH 值应≤8）,
禁止使用PH值大于8的地下水或含有较高浓度的氯离子水。
适用范围：
适用于半导体电锅炉等类似设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of semiconductor electric
boilers and similar equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ20-02A
|
220V
|
2000W
|
18.2A
|
2500V/1 min
|
165x48x48mm
|
|
MZ20-04A
|
220V
|
4000W
|
36.4A
|
2500V/1 min
|
250x48x48mm
|
|
MZ20-06A
|
220V
|
6000W
|
54.6A
|
2500V/1 min
|
325x48x48mm
|
|
MZ20-08A
|
220V
|
8000W
|
72.8A
|
2500V/1 min
|
390x48x48mm
|
|
MZ20-10A
|
220V
|
10000W
|
91.0A
|
2500V/1 min
|
450x48x48mm
|
PTC Thermostatic Heating
Elements
适用范围：
适用于飞机、动车、汽车、空调、暖气机、干衣机等类似用途设备
电热器件的恒温加热。
APPLICATION SCOPE:
Applicable to heat pump water heater, heat pump central air conditioner,
electric heating apparatus of similar purpose.
|
型号 Model |
额定工作电压 Rated Voltage |
零功率电阻值 Zero Power Resistance Value |
居里温度 Curie Temperature |
外观尺寸 Dimension L×W×H |
|
MZ9-FJA-1
|
220V AC
|
1000~4000Ω
|
120°C~260°C
|
24×15×2.5mm
|
|
MZ9-FIA-2
|
220V AC
|
1000~4000Ω
|
120°C~260°C
|
30×15×2.5mm
|
|
MZ9-FUD-1
|
350V DC
|
4000~8000Ω
|
220°C
|
24×15×3.5mm
|
|
MZ9-FTD-2
|
600V DC
|
10000~20000Ω
|
180°C
|
24×15×4.0mm
|
|
MZ9-FID-3
|
110V DC
|
100~450Ω
|
220°C
|
24×15×2.5mm
|
PTC Thermostatic Heating
Elements
适用范围：
适用于直流热阻胶枪等类似电热器具的恒温加热
APPLICATION SCOPE:
Applicable to constant temperature heating of DC hot melt glue guns and,
similar electric heating appliances.
|
型号 Model |
额定工作电压 Rated Voltage |
零功率电阻值 Zero Power Resistance Value |
居里温度 Curie Temperature |
外观尺寸 Dimension L×W×H |
|
MZ9-ZTD-1
|
3.6V DC
|
0.8Ω~1.5Ω
|
170°C
|
Φ10.2×Φ6.6×24mm
|
|
MZ9-ZTD-2
|
7.2V DC
|
2.0Ω~3.0Ω
|
170°C
|
Φ10.2×Φ6.6×24mm
|
|
MZ9-ZTD-1
|
10.6V DC
|
3.0Ω~4.0Ω
|
170°C
|
Φ10.2×Φ6.6×24mm
|
|
MZ9-ZTD-2
|
14.4V DC
|
5.0Ω~6.0Ω
|
170°C
|
Φ10.2×Φ6.6×24mm
|
|
MZ9-ZTD-3
|
18.0V DC
|
6.0Ω~9.0Ω
|
170°C
|
Φ10.2×Φ6.6×24mm
|
PTC Thermostatic Heating
Elements
适用范围：
适用于电子驱蚊器、汽车电热水瓶、咖啡壶、桑拿美容器等类似电热器具的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of electronic mosquito,
repellent,car electric thermos, coffee pot, sauna beauty device and
similar electric heating appliances.
|
型号 Model |
额定工作电压 Rated Voltage |
零功率电阻值 Zero Power Resistance Value |
居里温度 Curie Temperature |
外观尺寸 Dimension L×W×H |
|
MZ9-YHA-1
|
220V AC
|
1000Ω~4000Ω
|
240°C
|
Φ20×2.5mm
|
|
MZ9-YHD-1
|
24V DC
|
10Ω~50Ω
|
220°C
|
Φ20×2.0mm
|
|
MZ9-YHA-1
|
220V AC
|
1000Ω~4000Ω
|
80°C
|
Φ16×2.5mm
|
|
MZ9-YHA-2
|
220V AC
|
1000Ω~4000Ω
|
220°C
|
Φ8×2.5mm
|
|
MZ9-YHA-3
|
220V AC
|
1000Ω~4000Ω
|
180°C
|
Φ6×2.5mm
|
PTC Thermostatic Heating
Elements
适用范围：
适用于电子驱蚊器、电子奶瓶、医疗电热器具、热熔胶枪等类似电热器具的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of electronic mosquito,
repellents, electronic baby bottles, medical electric heating appliances, hot
melt glue guns and similar electric heating appliances.
|
型号 Model |
额定工作电压 Rated Voltage |
零功率电阻值 Zero Power Resistance Value |
居里温度 Curie Temperature |
外观尺寸 Dimension L×W×H |
|
MZ9-HTD-1
|
7.2V DC
|
2.0Ω~4.0Ω
|
170°C
|
Φ12×Φ5×0.8mm
|
|
MZ9-HTD-2
|
3.6V DC
|
1.5Ω~4.0Ω
|
170°C
|
Φ14×Φ5×0.8mm
|
|
MZ9-HSA-1
|
220V AC
|
1000Ω~2000Ω
|
160°C
|
Φ20×Φ8×2.5mm
|
|
MZ9-HTA-1
|
220V AC
|
1000Ω~2000Ω
|
180°C
|
Φ18×Φ6×2.5mm
|
|
MZ9-HTA-2
|
110V AC
|
200Ω~500Ω
|
180°C
|
Φ16×Φ6×2.5mm
|
PTC Liquid
Heater
适用范围：
适用于汽车电热水瓶、咖啡壶、电茶壶等类似用途的液体加热器具。
APPLICATION SCOPE:
Applicable to car electric thermos, coffee pots, electric tea kettles and other,
similar liquid heating appliances.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ10-Y50A
|
230V AC
|
500W
|
4.5A
|
2500V/1 min
|
Φ80×12mm
|
|
MZ10-Y20A
|
230V AC
|
200W
|
1.8A
|
2500V/1 min
|
Φ62×12mm
|
|
MZ10-Y40B
|
110V AC
|
400W
|
7.3A
|
1750V/1min
|
Φ80×12mm
|
|
MZ10-Y15D
|
24V DC
|
150W
|
12.5A
|
1250V/1min
|
Φ80×12mm
|
|
MZ10-Y19D
|
12V DC
|
90W
|
15.0A
|
1250V/1min
|
Φ62×12mm
|
PTC Auxiliary Air Energy
Heater
适用范围：
适用于空气能热水机、空气能中央空调、太阳能热水器等类似用途电热设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of similar electric heating
equipment such as air energy water heaters, air energy central air
conditioners, and solar water heaters.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ24-10A1
|
220V
|
1000W
|
10.5 A
|
2500V/1 min
|
Φ60×128mm
|
|
MZ24-20A1
|
220V
|
2000W
|
18.2A
|
2500V/1 min
|
Φ60×165mm
|
|
MZ24-30A1
|
220V
|
3000W
|
27.3A
|
2500V/1 min
|
Φ60×205mm
|
|
MZ24-40A1
|
220V
|
4000W
|
36.4A
|
2500V/1 min
|
Φ60×250mm
|
|
MZ24-50A1
|
220V
|
5000W
|
45.5A
|
2500V/1 min
|
Φ60×285mm
|
PTC Convection-Type
Air Heater
适用范围：
适用于对流式空气加热器等类似用途电热器具的恒温加热。
APPLICATION SCOPE:
Applicable to heat pump water heater, heat pump central air conditioner,
electric heating apparatus of similar purpose.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ15-1
|
220V AC
|
300W
|
2.8 A
|
1750V/1min
|
Φ82×160mm
|
|
MZ15-2
|
220V AC
|
500W
|
4.6A
|
1750V/1min
|
Φ82×200mm
|
|
MZ15-3
|
220V AC
|
800W
|
7.3A
|
1750V/1min
|
Φ82×260mm
|
|
MZ15-4
|
220V AC
|
1000W
|
9.1A
|
1750V/1min
|
Φ82×300mm
|
PTC Aircraft Dryer
Heater
适用范围：
适用于飞机干燥机等类似用途干燥设备的恒温发热。
APPLICATION SCOPE:
Applicable to constant temperature heating of aircraft dryers and other
similar drying equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ23-1
|
110V DC
|
1000W
|
18.2A
|
2500V/1min
|
255x100x72.5mm
|
|
MZ23-2
|
110V DC
|
1300W
|
23.7A
|
2500V/1min
|
255x100x72.5mm
|
|
MZ23-3
|
110V DC
|
1500W
|
27.3A
|
2500V/1min
|
255x100x72.5mm
|
PTC Thermostat
Heater
适用范围：
适用于电子驱蚊器、保温盒、干燥箱、培育箱等类似用途电热器具的
恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of electronic mosquito
repellents, heat preservation boxes, drying boxes, incubators and other
similar electric heating appliances.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ13-2
|
200V AC
|
20W
|
0.2A
|
1750V/1min
|
37x23x5mm
|
|
MZ13-3
|
200V AC
|
30W
|
0.28A
|
1750V/1min
|
37x23x5mm
|
|
MZ13-4
|
100V AC
|
30W
|
0.6A/0.3A
|
1750V/1min
|
37x23x5mm
|
适用范围：
适用于空调、洗衣机、暖气机、烘干机、无叶风扇、消毒碗柜等类似暖
气、烘干设备的恒温发热。
APPLICATION SCOPE:
Applicable to constant temperature heating of air conditioners, washing
machines, heaters, dryers, bladeless fans, disinfection cupboards and
similar heating and drying equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
居里温度 Curie Temperature |
外观尺寸 Dimension ΦxH |
|
MZ11-08A1
|
220V
|
800W
|
7.3A
|
220°C
|
97x44x15mm
|
|
MZ11-10A1
|
220V
|
1000W
|
9.1A
|
220°C
|
120x44x15mm
|
|
MZ11-12A1
|
230V
|
1200W
|
10.5 A
|
220°C
|
147x44x15mm
|
|
MZ11-20A1
|
220V
|
4000W
|
36.4A
|
220°C
|
300x44x24mm
|
|
MZ11-10A1
|
220V
|
1600W
|
14.6 A
|
220°C
|
240x16x24mm
|
PTC Insulated
Heater
适用范围：
适用于空调、空气净化器、干燥机、烘被机、医疗设备等类似设备的
恒温发热。
APPLICATION SCOPE:
Applicable to constant temperature heating of air conditioners, air purifiers,
dryers, quilt heaters, medical equipment and other similar equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ12-04A1
|
220V
|
400W
|
3.7A
|
2500V/1 min
|
48x44x15mm
|
|
MZ12-06A1
|
220V
|
600W
|
5.5A
|
2500V/1 min
|
73x44x15mm
|
|
MZ12-08A1
|
220V
|
800W
|
7.3A
|
2500V/1 min
|
97x44x15mm
|
|
MZ12-12A1
|
220V
|
1200W
|
10.9A
|
2500V/1 min
|
147x44x15mm
|
|
MZ12-20A1
|
220V
|
2000W
|
18.2A
|
2500V/1 min
|
300x44x15mm
|
PTC Auto Air
Conditioner Heater
适用范围：
适用于汽车空调等类似设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of automobile air conditioners
and other similar equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Curie Temperature |
最大冲击电流 Max Surge Current |
外观尺寸 Dimension L×W×H |
|
MZ16-1
|
12V DC
|
300W
|
50A
|
193x21 x6.4mm
|
|
MZ16-2
|
24V DC
|
300W
|
25A
|
193x21 x5.8mm
|
|
MZ16-3
|
350V DC
|
450W
|
2.6A
|
255x20x6.4mm
|
|
MZ16-4
|
600V DC
|
500W
|
1.7A
|
345x20x7.0mm
|
PTC Moisture-Proof
Heater
适用范围：
适用于汽车空调等类似设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of bathroom heaters, quilt
dryers and other similar electric heating appliances.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ14-02
|
100V
|
400W
|
8A
|
2400V/1 min
|
125x30x34mm
|
|
MZ14-04
|
100V
|
600W
|
12A
|
2400V/1 min
|
117x48x30mm
|
|
MZ14-06
|
100V
|
800W
|
16A
|
2400V/1 min
|
132x48x30mm
|
|
MZ14-09
|
100V
|
1250W
|
25A
|
2400V/1 min
|
218x48x34mm
|
|
MZ14-08
|
100V
|
1350W
|
27A
|
2400V/1 min
|
278x60x34mm
|

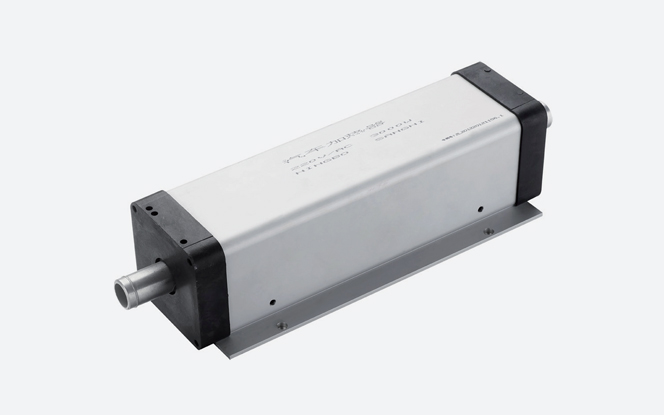

PTC Auto Liquid
Heater
适用范围：
适用于燃油汽车、电动汽车等类似用途设备的液体加热。
APPLICATION SCOPE:
Applicable to liquid heating of fuel vehicles, electric vehicles and other
similar equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ22-1
|
24V DC
|
800W
|
66.7A
|
1250V/1 min
|
185x100x72.5mm
|
|
MZ22-2
|
350V DC
|
4000W
|
22.9A
|
2500V/1 min
|
255x100x72.5mm
|
适用范围：
适用于电动汽车空调等类似设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of electric vehicle air
conditioners and similar equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ21-20B
|
600V DC
|
2000W
|
6.7A
|
2500V/1min
|
345x112x28mm
|
|
MZ21-30B
|
600V DC
|
3000W
|
10A
|
2500V/1min
|
345x150x28mm
|
PTC Anti-Corrosion Electric
Boiler Heater
产品特点：在加热管内壁设置黄铜管，以提高加热器的抗腐蚀能力,
和使用寿命。
适用范围：
适用于半导体电锅炉等类似设备的恒温加热。
APPLICATION SCOPE:
Applicable to constant temperature heating of semiconductor electric
boilers and similar equipment.
|
型号 Model |
额定工作电压 Rated Voltage |
额定输入功率 Rrated Power |
最大冲击电流 Max Surge Current |
电气强度 Electrical Sterngth |
外观尺寸 Dimension ΦxH |
|
MZ25-02A
|
220V
|
2000W
|
18.2A
|
2500V/1 min
|
Φ60x210mm
|
|
MZ25-04A
|
220V
|
4000W
|
36.4A
|
2500V/1 min
|
Φ60x280mm
|
|
MZ25-06A
|
220V
|
6000W
|
54.6A
|
2500V/1 min
|
Φ60x355mm
|
|
MZ25-08A
|
220V
|
8000W
|
72.8A
|
2500V/1 min
|
Φ60x437mm
|
|
MZ25-10A
|
220V
|
10000W
|
91.0A
|
2500V/1 min
|
Φ60x485mm
|
© 宁波桑尼电子有限公司 版权所有
服务热线
